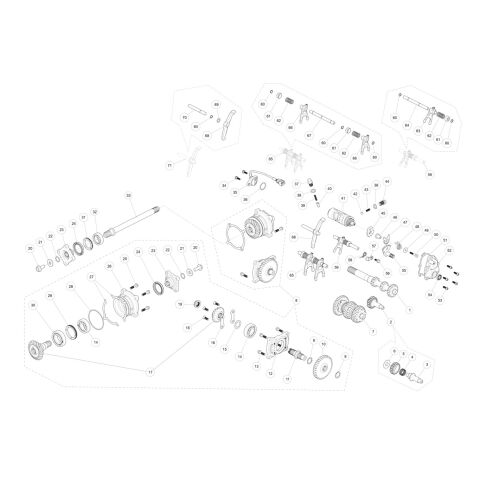

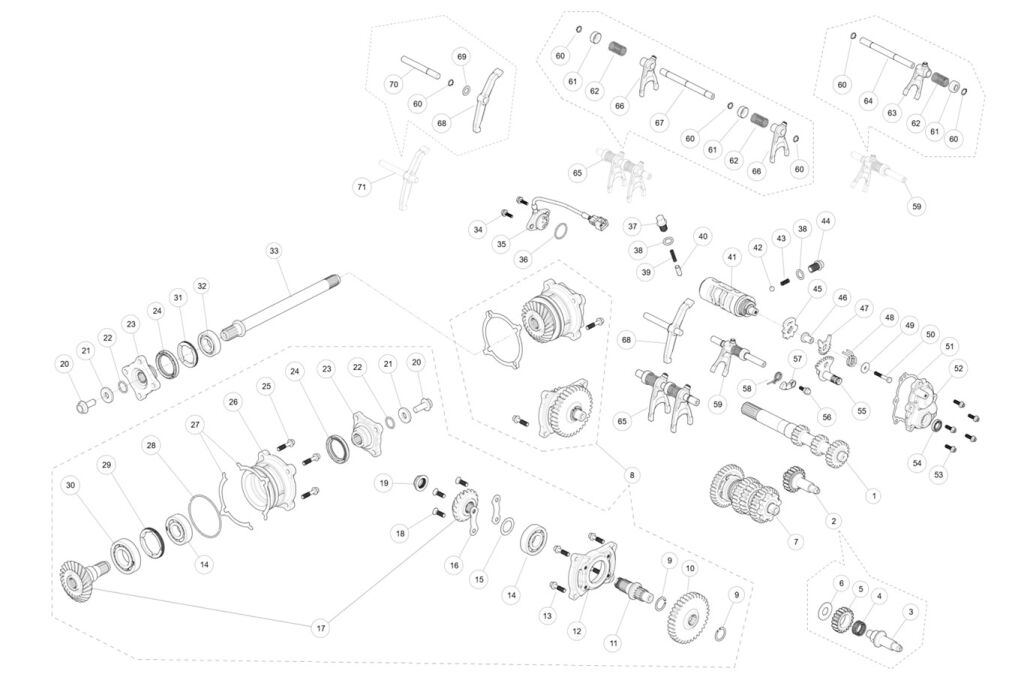

TRANSMISSION MAIN SHAFT

Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
71 PARKING BRAKE ARM ASSEMBLY (Ref. č 71) F01F10600001 PARKING BRAKE ARM ASSEMBLY  1 518,18 Kč 627 Kč
SKLADEM
52 SHIFTSHAFT COVER (Ref. č 52) F01F10009001 SHIFTSHAFT COVER  1 1 030,58 Kč 1 247 Kč
SKLADEM
51 SHIFTSHAFT COVER GASKET (Ref. č 51) F01F10010001 SHIFTSHAFT COVER GASKET  1 57,02 Kč 69 Kč
SKLADEM
50 BOLT M6×40 (Ref. č 50) F01F10406001 BOLT M6×40  1 57,02 Kč 69 Kč
SKLADEM
49 SPACER 6.2×22×2 (Ref. č 49) F01F10407001 SPACER 6.2×22×2  1 57,02 Kč 69 Kč
SKLADEM
48 SECTOR GEAR TORSION SPRING (Ref. č 48) F01F10404001 SECTOR GEAR TORSION SPRING  1 57,02 Kč 69 Kč
SKLADEM
47 SECTOR GEAR (Ref. č 47) F01F10403001 SECTOR GEAR  1 319,01 Kč 386 Kč
SKLADEM
46 SECTOR GEAR SPACER (Ref. č 46) F01F10405001 SECTOR GEAR SPACER  1 132,23 Kč 160 Kč
SKLADEM
45 POSITIONING STAR (Ref. č 45) F01F10402001 POSITIONING STAR  1 208,26 Kč 252 Kč
SKLADEM
44 NEUTRAL POSITION SPRING PLUG (Ref. č 44) F01F10007001 NEUTRAL POSITION SPRING PLUG  1 82,64 Kč 100 Kč
SKLADEM
43 NEUTRAL POSITION SPRING (Ref. č 43) F01F10001001 NEUTRAL POSITION SPRING  1 57,02 Kč 69 Kč
SKLADEM
42 BALL 3/8 (Ref. č 42) GBT003081003 BALL 3/8  1 57,02 Kč 69 Kč
SKLADEM
41 SHIFT DRUM (Ref. č 41) F01F10100001 SHIFT DRUM  1 1 899,17 Kč 2 298 Kč
SKLADEM
40 PARKING BRAKE PIN (Ref. č 40) F01F10005001 PARKING BRAKE PIN  1 61,16 Kč 74 Kč
SKLADEM
39 PARKING BRAKE ARM SPRING (Ref. č 39) F01F10002001 PARKING BRAKE ARM SPRING  1 57,02 Kč 69 Kč
SKLADEM
38 GASKET 14×21×1.5 (Ref. č 38) F01F10003001 GASKET 14×21×1.5  2 93,39 Kč 113 Kč
SKLADEM
53 BOLT M6×20 (Ref. č 53) F01000004001 BOLT M6×20  5 57,02 Kč 69 Kč
SKLADEM
54 Oil seal 15×25×5 (Ref. č 54) F01F10011001 Oil seal 15×25×5  1 57,02 Kč 69 Kč
SKLADEM
55 SHIFT SHAFT (Ref. č 55) F01F10500001 SHIFT SHAFT  1 718,18 Kč 869 Kč
SKLADEM
70 PARKING BRAKE ARM SHAFT (Ref. č 70) F01F10601001 PARKING BRAKE ARM SHAFT  1 405,79 Kč 491 Kč
SKLADEM
69 SPACER 12×20×1 (Ref. č 69) F01F10603001 SPACER 12×20×1  2 57,02 Kč 69 Kč
SKLADEM
68 PARKING BRAKE ARM (Ref. č 68) F01F10602001 PARKING BRAKE ARM  2 1 030,58 Kč 1 247 Kč
SKLADEM
67 SHIFT RAIL H/R (Ref. č 67) F01F10301001 SHIFT RAIL H/R  2 197,52 Kč 239 Kč
SKLADEM
66 SHIFT FORK H/R (Ref. č 66) F01F10310001 SHIFT FORK H/R  3 718,18 Kč 869 Kč
SKLADEM
65 SHIFT RAIL H/R ASSEMBLY (Ref. č 65) F01F10300001 SHIFT RAIL H/R ASSEMBLY  1 1 123,97 Kč 1 360 Kč
SKLADEM ZA 8 dnů
64 SHIFT RAIL L (Ref. č 64) F01F10201001 SHIFT RAIL L  1 301,65 Kč 365 Kč
SKLADEM
63 SHIFT FORK L (Ref. č 63) F01F10210001 SHIFT FORK L  1 822,31 Kč 995 Kč
SKLADEM
62 SHIFT FORK (Ref. č 62) F01F10202001 SHIFT FORK  1 197,52 Kč 239 Kč
SKLADEM
61 SHIFT FORK SPRING SEAT (Ref. č 61) F01F10203001 SHIFT FORK SPRING SEAT  1 57,02 Kč 69 Kč
SKLADEM
60 Ring,Snap 12 (Ref. č 60) GBT000894006 Ring,Snap 12  2 57,02 Kč 69 Kč
SKLADEM
59 SHIFT RAIL L ASSEMBLY (Ref. č 59) F01F10200001 SHIFT RAIL L ASSEMBLY  1 579,34 Kč 701 Kč
SKLADEM
58 DETENT PAWL TORSION SPRING (Ref. č 58) F01F10006001 DETENT PAWL TORSION SPRING  1 57,02 Kč 69 Kč
SKLADEM
57 DETENT PAWL (Ref. č 57) F01F10401001 DETENT PAWL  1 212,40 Kč 257 Kč
NA CESTĚ
56 SHOULDER BOLT (Ref. č 56) F01F10408001 SHOULDER BOLT  1 57,02 Kč 69 Kč
SKLADEM
37 PARKING BRAKE SPRING PLUG (Ref. č 37) F01F10004001 PARKING BRAKE SPRING PLUG  1 85,12 Kč 103 Kč
SKLADEM
36 O-Ring 29.6×2.4 (Ref. č 36) F01F10008001 O-Ring 29.6×2.4  1 57,02 Kč 69 Kč
SKLADEM
35 GEAR SENSOR (Ref. č 35) F01F10700001 GEAR SENSOR  1 1 030,58 Kč 1 247 Kč
SKLADEM
16 BEARING HUSING PLATE (Ref. č 16) F01F20404001 BEARING HUSING PLATE  2 57,02 Kč 69 Kč
SKLADEM
15 F01F20405000 R/B F01F20405005 DRIVE BEVEL GEAR SHIMS (unavailable)  1 57,02 Kč 69 Kč
NA DOTAZ
14 BEARING 6305 (Ref. č 14) GBT000276012 BEARING 6305  2 526,45 Kč 637 Kč
SKLADEM
13 BOLT M8×30 (Ref. č 13) F01000015001 BOLT M8×30  4 57,02 Kč 69 Kč
SKLADEM
12 DRIVE BEVEL GEAR HOUSING (Ref. č 12) F01F20402001 DRIVE BEVEL GEAR HOUSING  1 718,18 Kč 869 Kč
SKLADEM
11 DRIVE BEVEL GEAR SHAFT (Ref. č 11) F01F20406001 DRIVE BEVEL GEAR SHAFT  1 1 422,31 Kč 1 721 Kč
SKLADEM
10 REDUCTION DRIVEN GEAR (Ref. č 10) F01F20408001 REDUCTION DRIVEN GEAR  1 1 422,31 Kč 1 721 Kč
SKLADEM
9 CIRCLIP 25×1.2 (Ref. č 9) F01F20216001 CIRCLIP 25×1.2  2 57,02 Kč 69 Kč
SKLADEM
8 DRIVE & DRIVEN BEVEL GEAR HOUSING ASSY (Ref. č 8) F01F21000001 DRIVE & DRIVEN BEVEL GEAR HOUSING ASSY  1 9 248,76 Kč 11 191 Kč
NA DOTAZ
7 TRANSMISSION COUNTERSHAFT ASSEMBLY (Ref. č 7) F01F20600001 TRANSMISSION COUNTERSHAFT ASSEMBLY  1 3 808,26 Kč 4 608 Kč
SKLADEM
6 SPACER 17×38×2 (Ref. č 6) F01F20304001 SPACER 17×38×2  1 57,02 Kč 69 Kč
SKLADEM
5 R IDLE GEAR (Ref. č 5) F01F20302001 R IDLE GEAR  1 1 030,58 Kč 1 247 Kč
SKLADEM
4 NEEDLE ROLLER BEARING K252913 (Ref. č 4) F01F20310001 NEEDLE ROLLER BEARING K252913  1 61,16 Kč 74 Kč
SKLADEM
3 IDLE SHAFT (Ref. č 3) F01F20301001 IDLE SHAFT  1 1 030,58 Kč 1 247 Kč
SKLADEM ZA 8 dnů
2 IDLE SHAFT ASSEMBLY (Ref. č 2) F01F20300001 IDLE SHAFT ASSEMBLY  1 1 028,93 Kč 1 245 Kč
NA DOTAZ
17 DRIVE&DRIVEN BEVEL GEAR KIT (Ref. č 17) F01F21010001 DRIVE&DRIVEN BEVEL GEAR KIT  1 6 310,74 Kč 7 636 Kč
SKLADEM
18 SCREW M8×25 (Ref. č 18) GBT026731001 SCREW M8×25  4 57,02 Kč 69 Kč
SKLADEM
19 NUT M22×1 (Ref. č 19) F01F20403001 NUT M22×1  1 91,74 Kč 111 Kč
SKLADEM
34 BOLT M6×20 (Ref. č 34) F01000013001 BOLT M6×20  2 57,02 Kč 69 Kč
SKLADEM
33 TRANSMISSION SHAFT (Ref. č 33) F01F20601001 TRANSMISSION SHAFT  1 2 447,11 Kč 2 961 Kč
SKLADEM
32 BEARING 6205 (Ref. č 32) GBT000276008 BEARING 6205  1 312,40 Kč 378 Kč
SKLADEM
31 NUT M55×1.5×6-LH (Ref. č 31) F01C10001001 NUT M55×1.5×6-LH  1 171,90 Kč 208 Kč
SKLADEM
30 BEARING 6207 (Ref. č 30) GBT000276010 BEARING 6207  1 822,31 Kč 995 Kč
SKLADEM
29 NUT M65×1.5×8-LH (Ref. č 29) F01F20506001 NUT M65×1.5×8-LH  1 212,40 Kč 257 Kč
SKLADEM
28 O-Ring 88×2.8 (Ref. č 28) F01F20504001 O-Ring 88×2.8  1 93,39 Kč 113 Kč
SKLADEM
27 F01F20505000 R/B F01F20505001-5 DRIVEN BEVEL GEAR SHIMS (please select a thickness)  2 57,02 Kč 69 Kč
NA DOTAZ
26 DRIVEN BEVEL GEAR HOUSING (Ref. č 26) F01F20502001 DRIVEN BEVEL GEAR HOUSING  1 859,50 Kč 1 040 Kč
SKLADEM
25 BOLT M8×35 (Ref. č 25) F01000016001 BOLT M8×35  4 57,02 Kč 69 Kč
NA DOTAZ
24 Oil seal 44×60×7 (Ref. č 24) F01F20503001 Oil seal 44×60×7  2 248,76 Kč 301 Kč
SKLADEM
23 TRANSMISSION SHAFT FLANGE (Ref. č 23) F01F20507001 TRANSMISSION SHAFT FLANGE  2 1 547,93 Kč 1 873 Kč
SKLADEM
22 O-Ring 20×2.65 (Ref. č 22) F01F20508001 O-Ring 20×2.65  2 57,02 Kč 69 Kč
SKLADEM
21 SPACER 12.5×32×5 (Ref. č 21) F01F20509001 SPACER 12.5×32×5  2 57,02 Kč 69 Kč
SKLADEM
20 BOLT M12×1.25×30 (Ref. č 20) GBT005789054 BOLT M12×1.25×30  2 61,98 Kč 75 Kč
SKLADEM
1.1 TRANSMISSION MAIN SHAFT (Ref. č 1-1) F01F20101003 TRANSMISSION MAIN SHAFT  1 1 899,17 Kč 2 298 Kč
SKLADEM
