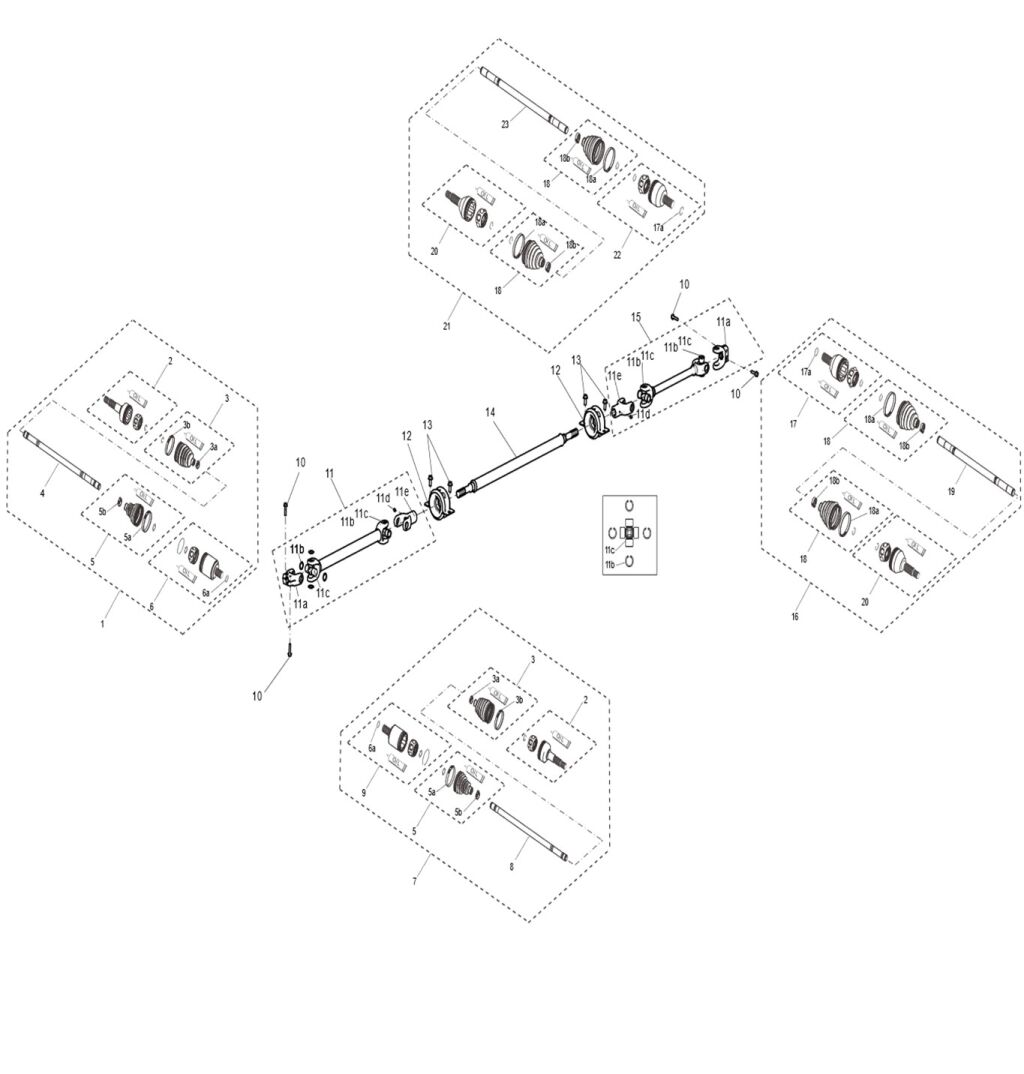

TRANSMISSION SYSTEM ASSEMBLY (NARROW VEHICLE VERSION)

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_150_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

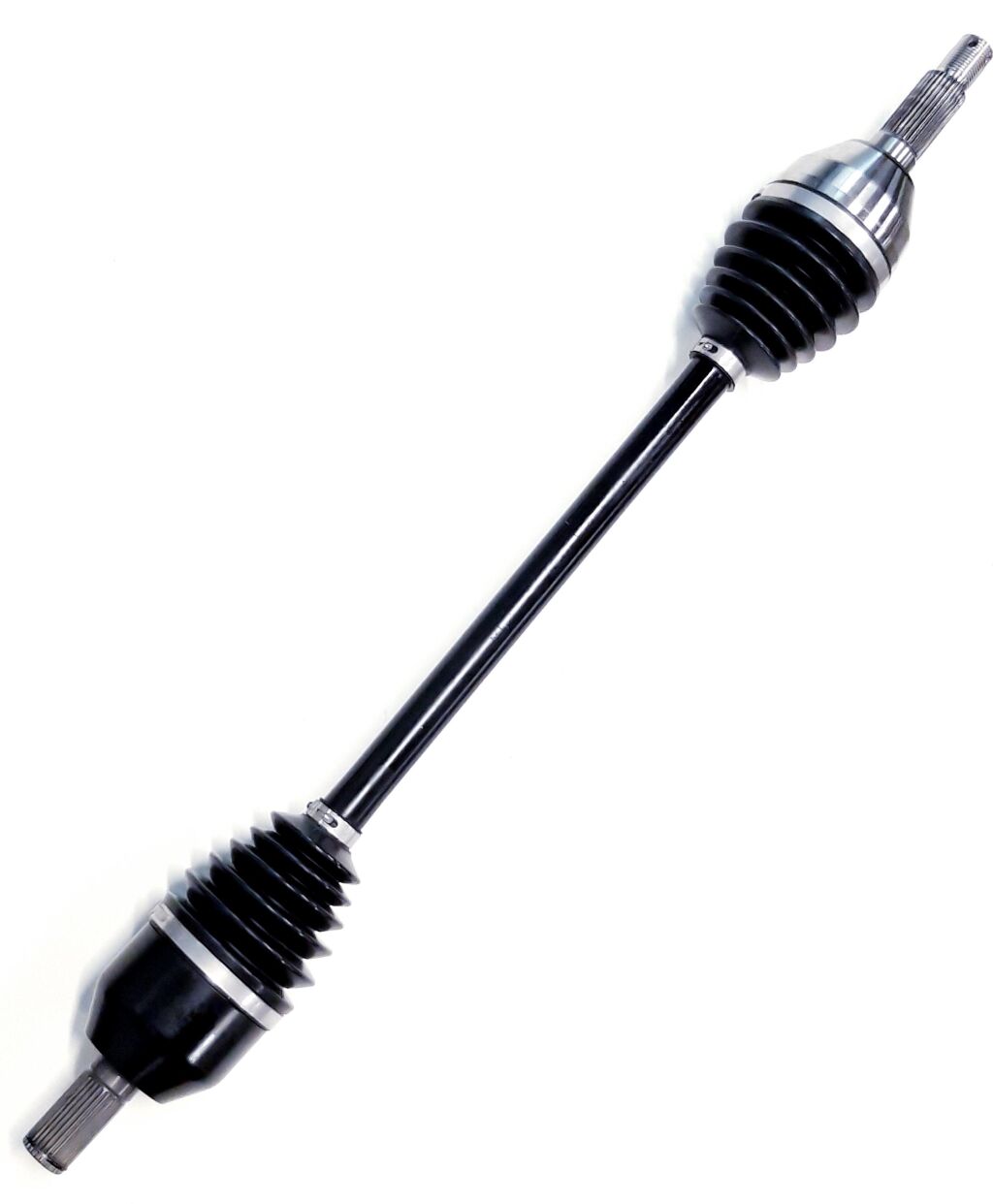

1 Front right constant velocity drive shaft assembly (Ref. č 1) S01P12000001 Front right constant velocity drive shaft assembly  1 4 788,43 Kč 5 794 Kč
SKLADEM
11d Straight pressure oil cup (Ref. č 11d) GBT001152001 Straight pressure oil cup  2 114,88 Kč 139 Kč
SKLADEM
11e U09P21301001 TRANSMISSION SHAFT SLIDING SPLINE FORK  2 814,88 Kč 986 Kč
NA DOTAZ

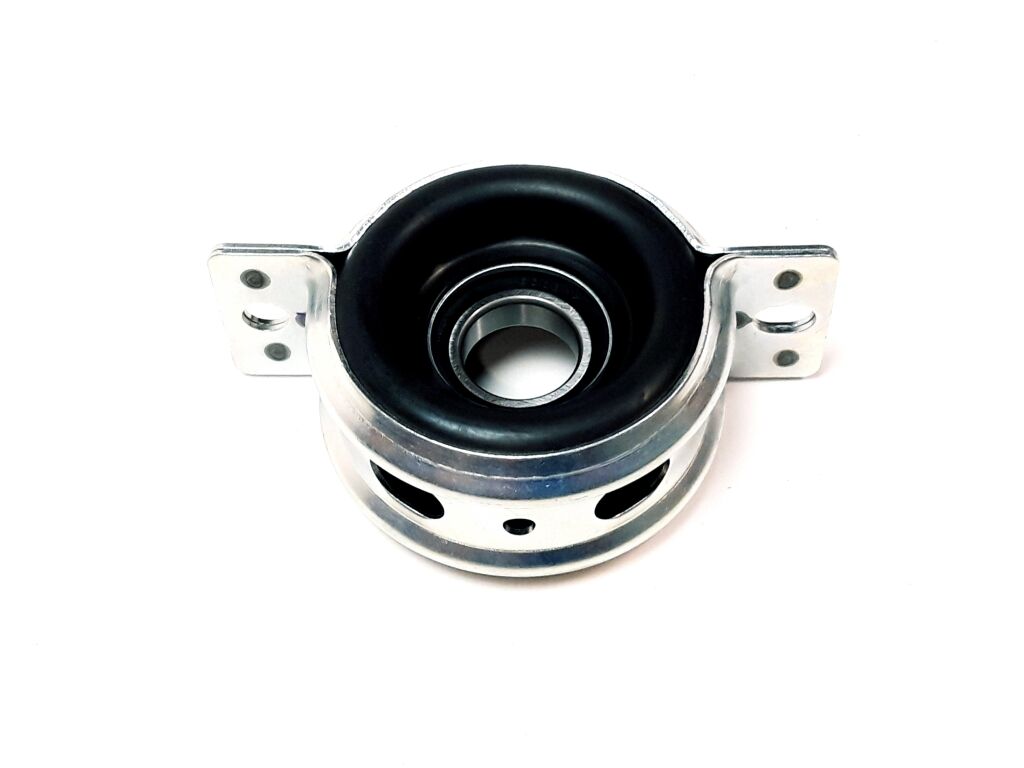

12 INTERMEDIATE SUPPORT SEAT (Ref. č 12) U01P21400001 INTERMEDIATE SUPPORT SEAT  2 800,83 Kč 969 Kč
SKLADEM
13 Hexagon flange bolt M10×1.25×25 (Ref. č 13) GBT005789026 Hexagon flange bolt M10×1.25×25  4 57,02 Kč 69 Kč
SKLADEM
14 S03P21200002 FRONT DRIVE SHAFT MIDDLE SECTION ASSEMBLY  1 1 471,90 Kč 1 781 Kč
NA DOTAZ
15 S05P21300002 DRIVE SHAFT REAR SECTION COMPONENTS  1 3 094,21 Kč 3 744 Kč
NA DOTAZ

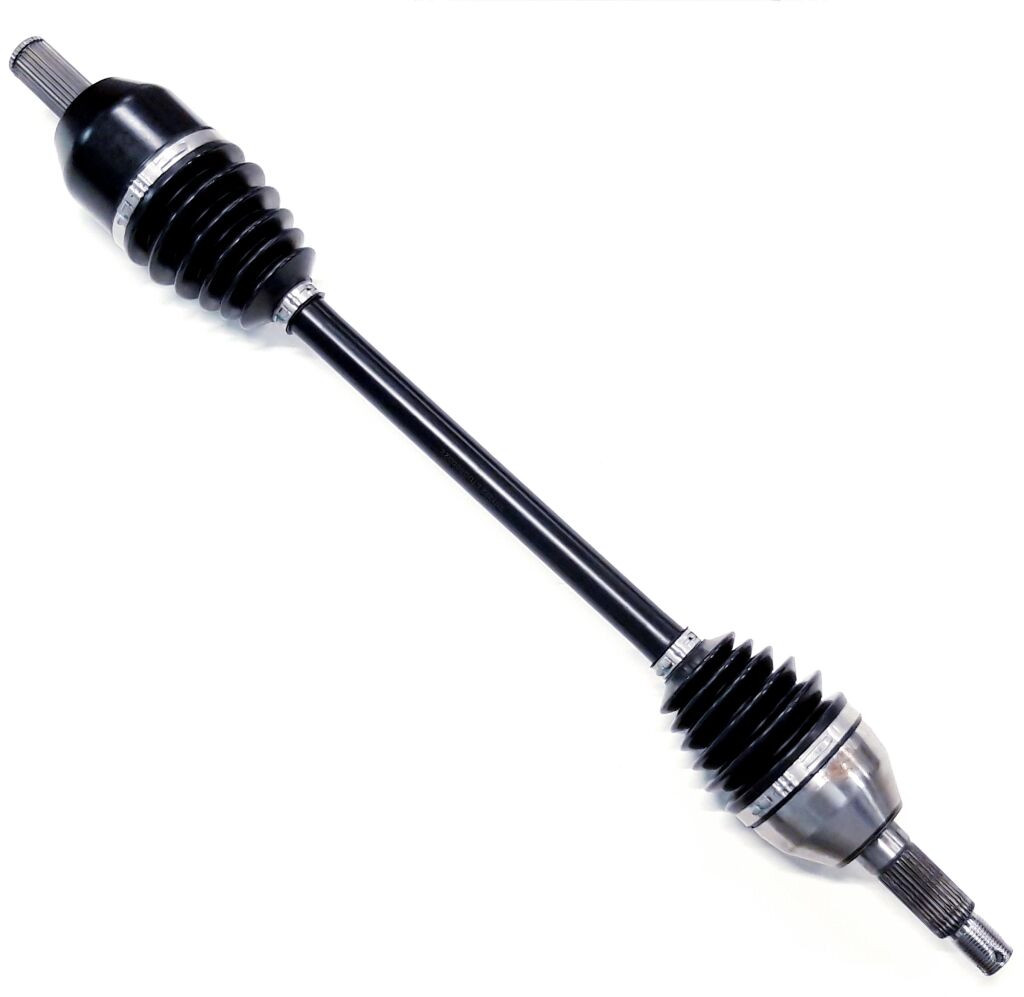

16 Rear left constant velocity drive shaft assembly (Ref. č 16) S05P14000001 Rear left constant velocity drive shaft assembly  1 5 880,99 Kč 7 116 Kč
SKLADEM ZA 5 dnů
17 S05P14001001 REAR LEFT INNER CV BOOT ASSEMBLY  1 1 772,73 Kč 2 145 Kč
NA DOTAZ
17a U09P13006001 CIRCLIP  4 57,02 Kč 69 Kč
NA DOTAZ
18 S05P13003001 REAR LEFT AND RIGHT INNER AND OUTER CV BOOT DUST COVER ASSEMBLY  4 517,36 Kč 626 Kč
NA DOTAZ
18a U09P13002001 BIG CLAMPING BAND  4 57,02 Kč 69 Kč
NA DOTAZ
18b U09P13004001 SMALL CLAMPING BAND  4 57,02 Kč 69 Kč
NA DOTAZ
19 S05P14003001 REAR LEFT MIDDLE SHAFT_NARROW VEHICLE VERSION  1 1 034,71 Kč 1 252 Kč
NA DOTAZ

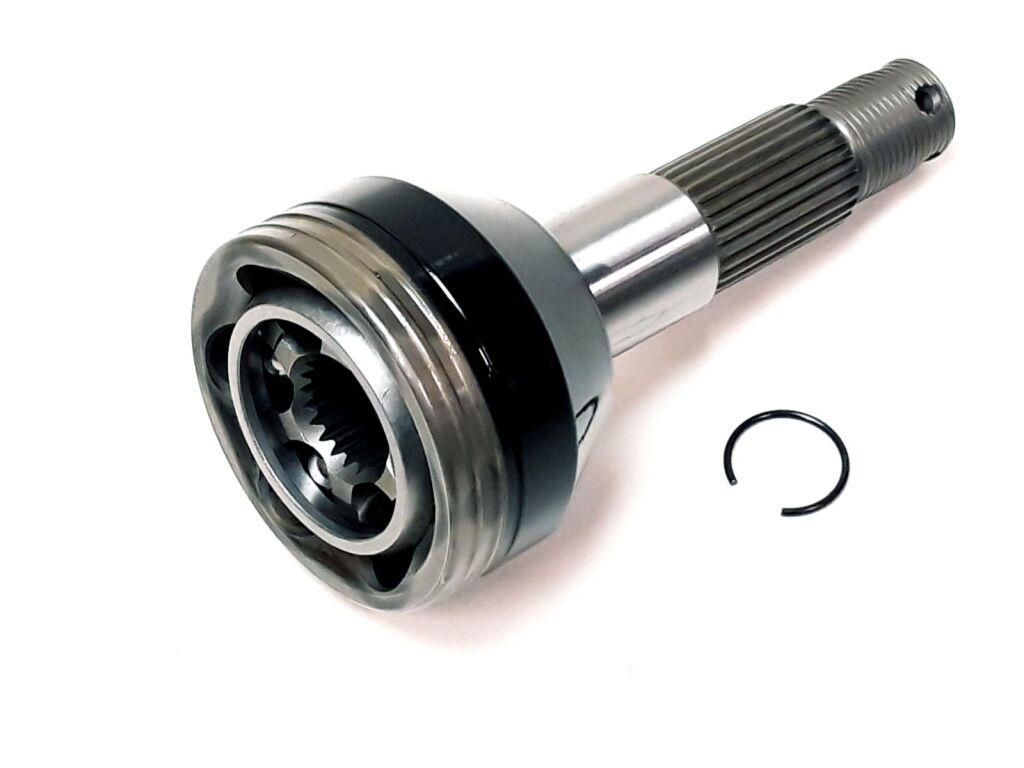

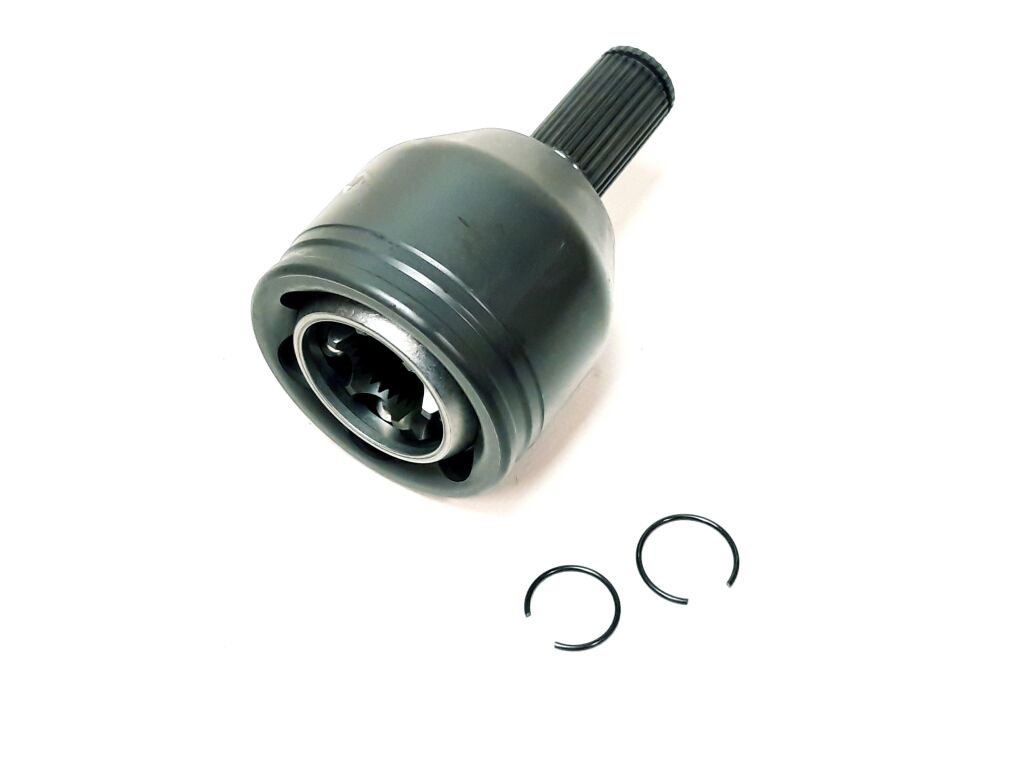

20 REAR LEFT AND RIGHT OUTER CV BOOT ASSEMBLY (Ref. č 20) S05P14002001 REAR LEFT AND RIGHT OUTER CV BOOT ASSEMBLY  2 1 846,28 Kč 2 234 Kč
SKLADEM

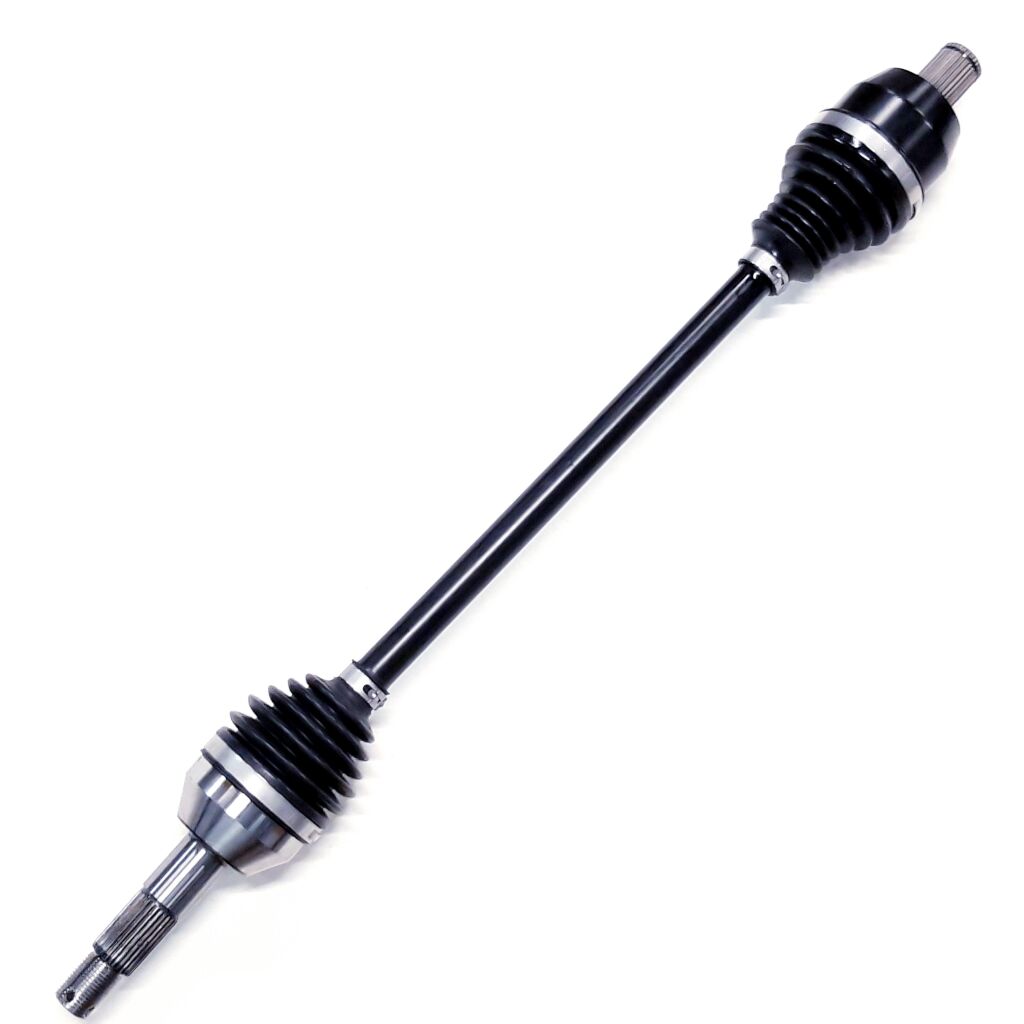

21 Rear right constant velocity drive shaft assembly (Ref. č 21) S05P13000001 Rear right constant velocity drive shaft assembly  1 5 933,06 Kč 7 179 Kč
NA DOTAZ
22 S05P13001001 REAR RIGHT INNER CV BOOT ASSEMBLY  1 1 772,73 Kč 2 145 Kč
NA DOTAZ

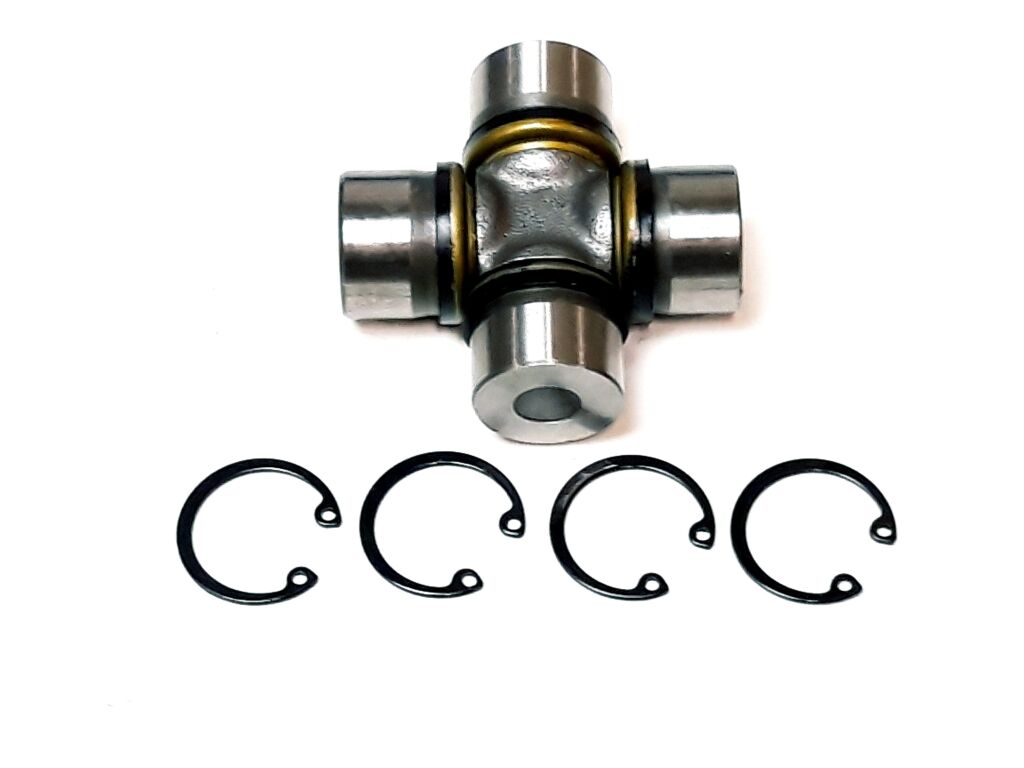

11c UNIVERRSAL CROSS SHAFT ASSY (Ref. č 11c) U01P22010001 UNIVERRSAL CROSS SHAFT ASSY  4 543,80 Kč 658 Kč
SKLADEM

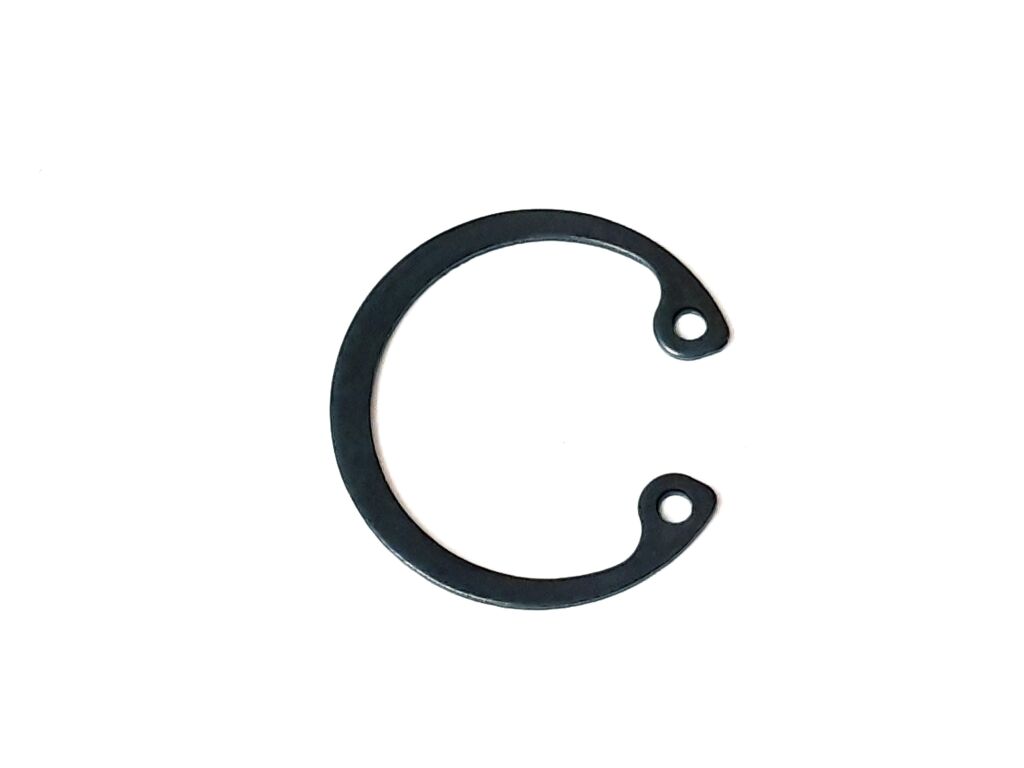

11b CIRCLIP 25 (Ref. č 11b) GBT000893007 CIRCLIP 25  16 57,02 Kč 69 Kč
SKLADEM
2 S01P11002001 FRONT LEFT AND RIGHT OUTER CV BOOT ASSEMBLY  2 1 476,86 Kč 1 787 Kč
NA DOTAZ
3 S01P11005001 FRONT LEFT AND RIGHT OUTER CV BOOT DUST COVER ASSEMBLY  2 517,36 Kč 626 Kč
NA DOTAZ
3a U01P11004001 SMALL CLAMPING BAND  2 57,02 Kč 69 Kč
NA DOTAZ
3b U01P11002001 BIG CLAMPING BAND  2 57,02 Kč 69 Kč
NA DOTAZ
4 S01P12002001 FRONT RIGHT MIDDLE SHAFT  1 886,78 Kč 1 073 Kč
NA DOTAZ
5 S01P11004001 FRONT LEFT AND RIGHT INNER CV BOOT DUST COVER ASSEMBLY  2 517,36 Kč 626 Kč
NA DOTAZ
5a U01P11008001 BIG CLAMPING BAND  2 57,02 Kč 69 Kč
NA DOTAZ
5b U01P11006001 SMALL CLAMPING BAND  2 57,02 Kč 69 Kč
NA DOTAZ
6 S01P12001001 FRONT RIGHT INNER CV BOOT ASSEMBLY  1 1 403,31 Kč 1 698 Kč
NA DOTAZ

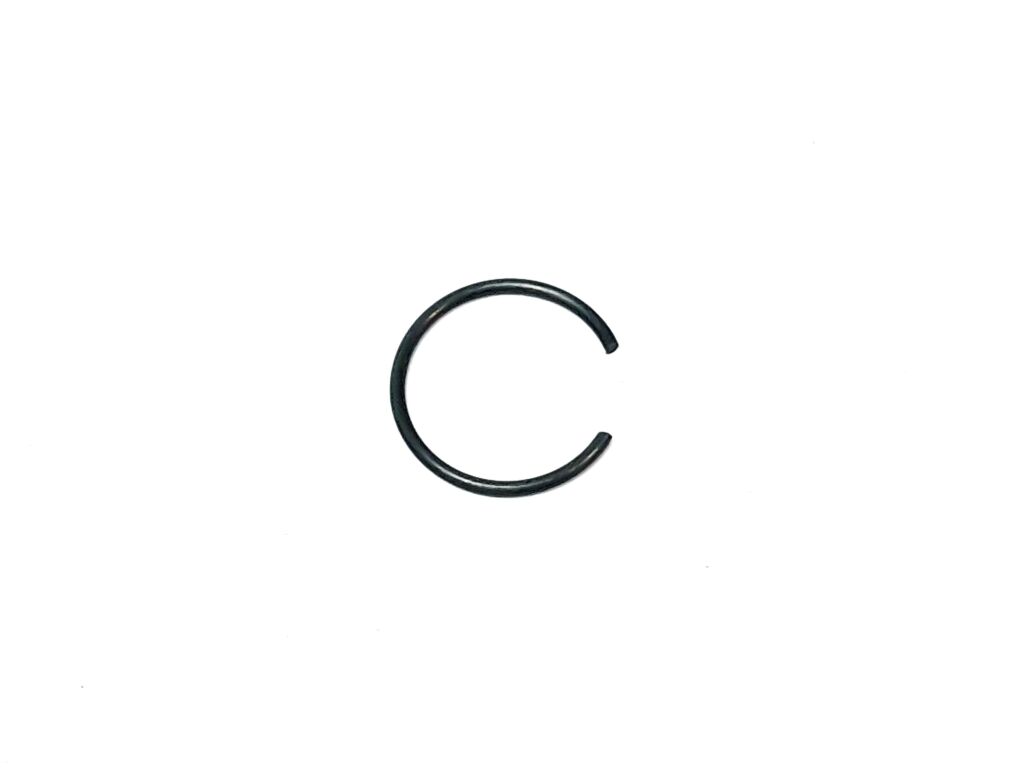

6a CIRCLIP (Ref. č 6a) U01P11011001 CIRCLIP  2 57,02 Kč 69 Kč
SKLADEM
7 Front constant velocity drive shaft assembly (Ref. č 7) S01P11000001 Front constant velocity drive shaft assembly  1 4 788,43 Kč 5 794 Kč
NA DOTAZ
8 S01P11003001 FRONT LEFT MIDDLE SHAFT  1 886,78 Kč 1 073 Kč
NA DOTAZ
9 S01P11001001 FRONT LEFT INNER CV BOOT ASSEMBLY  1 1 403,31 Kč 1 698 Kč
NA DOTAZ
10 HEXAGON FLANGE BOLT M8×35 (Ref. č 10) GBT005789018 HEXAGON FLANGE BOLT M8×35  4 57,02 Kč 69 Kč
SKLADEM
11 S03P21100002 FRONT DRIVE SHAFT FRONT SECTION ASSEMBLY  1 3 131,40 Kč 3 789 Kč
NA DOTAZ
11a U01P21101001 TRANSMISSION SHAFT MOUNTING SPLINE FORK  2 704,96 Kč 853 Kč
NA DOTAZ
23 S05P13002001 REAR RIGHT MIDDLE SHAFT_NARROW VEHICLE VERSION  1 1 034,71 Kč 1 252 Kč
NA DOTAZ
