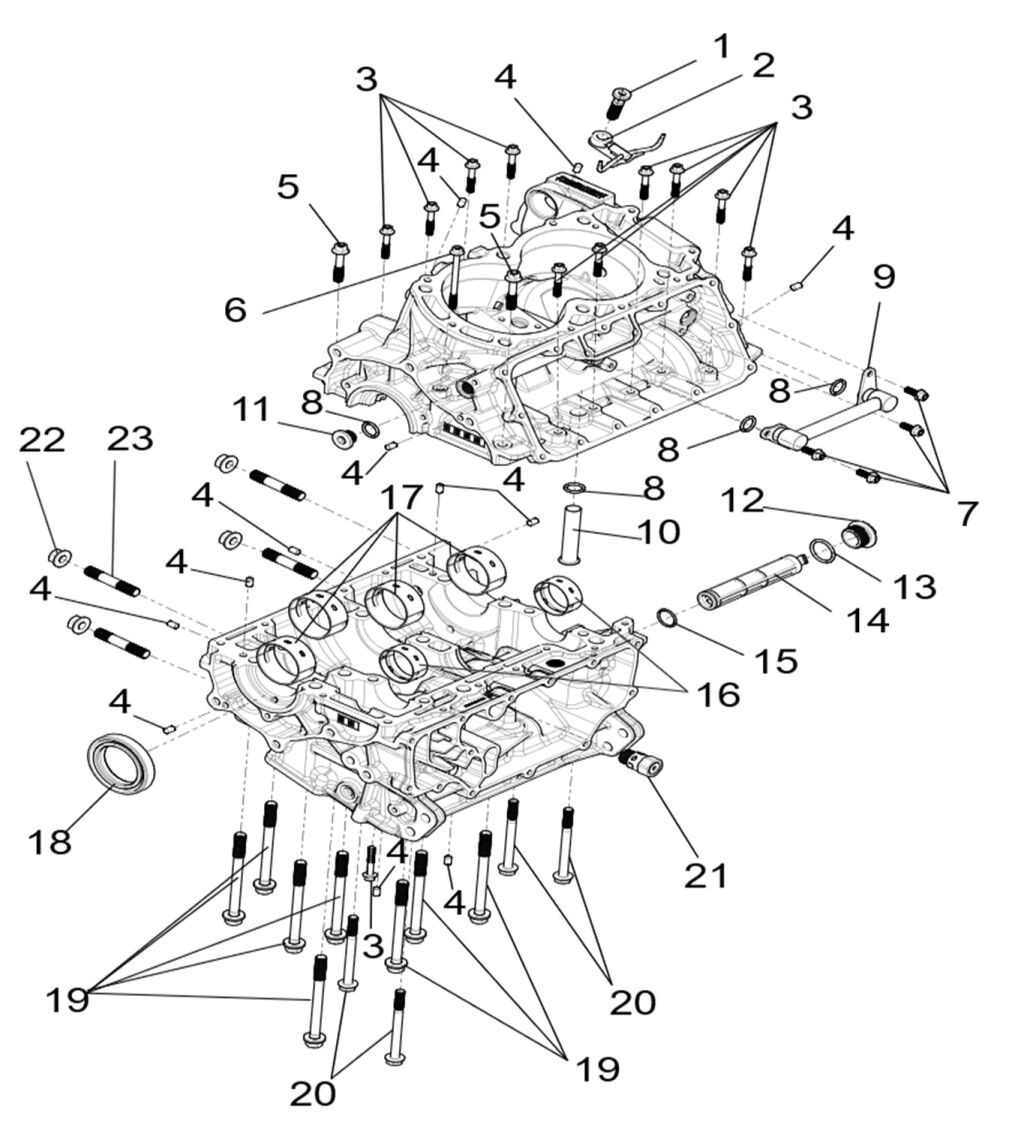

Upper and lower crankcase sub-assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_107_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

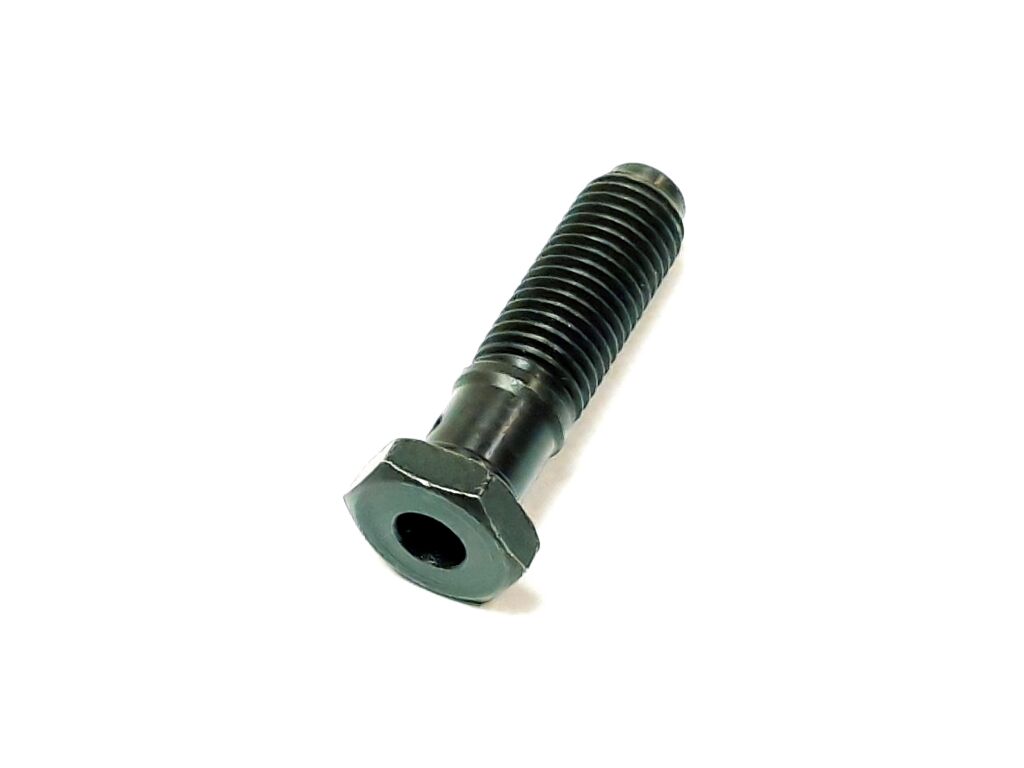

1 F02C15000001 QIL PIPE BANJO BOLT  1 273,55 Kč 331 Kč
NA CESTĚ

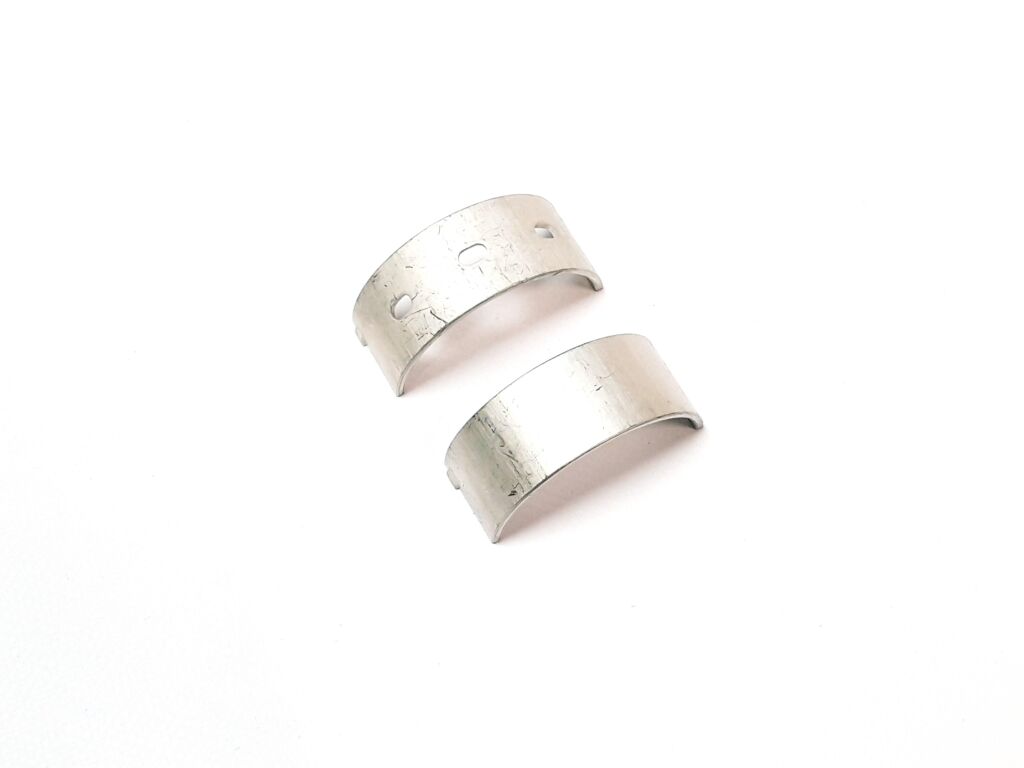

16 BALANCE SHAFT BEARING COMPENENT(WHITE) (Ref. č 16) F02C10003006 BALANCE SHAFT BEARING COMPENENT(WHITE)  2 140,50 Kč 170 Kč
SKLADEM
16 BALANCE SHAFT BEARING COMPENENT(BLUE) (Ref. č 16) F02C10003007 BALANCE SHAFT BEARING COMPENENT(BLUE)  2 140,50 Kč 170 Kč
SKLADEM
16 BALANCE SHAFT BEARING COMPENENT(RED) (Ref. č 16) F02C10003008 BALANCE SHAFT BEARING COMPENENT(RED)  2 140,50 Kč 170 Kč
SKLADEM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(GREEN) (Ref. č 17) F02C10002005 CRANKCASE CRANKSHAFT BUSHING COMPENENT(GREEN)  4 335,54 Kč 406 Kč
SKLADEM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(BLUE) (Ref. č 17) F02C10002006 CRANKCASE CRANKSHAFT BUSHING COMPENENT(BLUE)  4 335,54 Kč 406 Kč
SKLADEM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(WHITE) (Ref. č 17) F02C10002007 CRANKCASE CRANKSHAFT BUSHING COMPENENT(WHITE)  4 335,54 Kč 406 Kč
SKLADEM
17 CRANKCASE CRANKSHAFT BUSHING COMPENENT(RED) (Ref. č 17) F02C10002008 CRANKCASE CRANKSHAFT BUSHING COMPENENT(RED)  4 335,54 Kč 406 Kč
SKLADEM
18 OIL SEAL 47X70X12 (Ref. č 18) F02C14000001 OIL SEAL 47X70X12  1 185,95 Kč 225 Kč
SKLADEM
19 F02C11011001 R/B F02C11010001 BOLT M10×1.25×110  8 57,02 Kč 69 Kč
NA DOTAZ
20 BOLT M8×90 (Ref. č 20) F02C11004001 BOLT M8×90  4 57,02 Kč 69 Kč
SKLADEM
21 OIL REGULATOR VALVE UNIT (Ref. č 21) F01G00300001 OIL REGULATOR VALVE UNIT  1 1 300 Kč 1 573 Kč
SKLADEM
22 NUT M10X1.25 (Ref. č 22) E02C00002001 NUT M10X1.25  4 57,02 Kč 69 Kč
SKLADEM
16 BALANCE SHAFT BEARING COMPENENT(GREEN) (Ref. č 16) F02C10003005 BALANCE SHAFT BEARING COMPENENT(GREEN)  2 335,54 Kč 406 Kč
SKLADEM

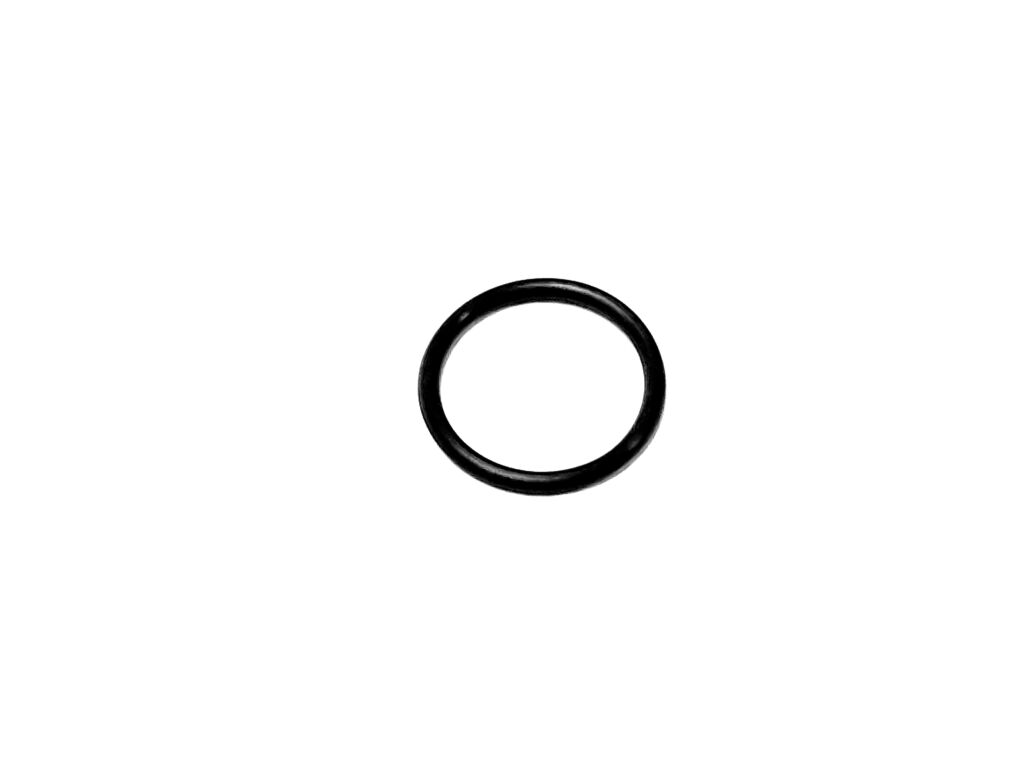

15 O-RING SEAL 18X1.9 (Ref. č 15) F02C10007001 O-RING SEAL 18X1.9  1 57,02 Kč 69 Kč
SKLADEM

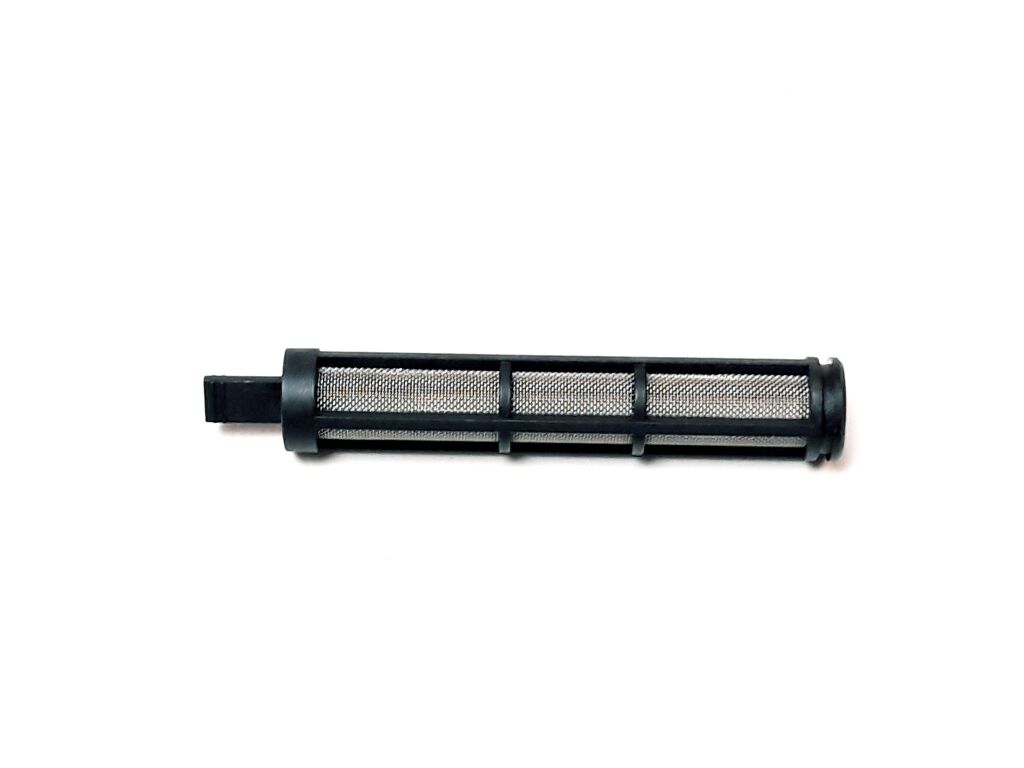

14 OIL FILTER COMBINATION (Ref. č 14) F02C12000001 OIL FILTER COMBINATION  1 229,75 Kč 278 Kč
SKLADEM
2 PISTON OIL NOZZLE (Ref. č 2) F02C16000001 PISTON OIL NOZZLE  1 504,96 Kč 611 Kč
SKLADEM

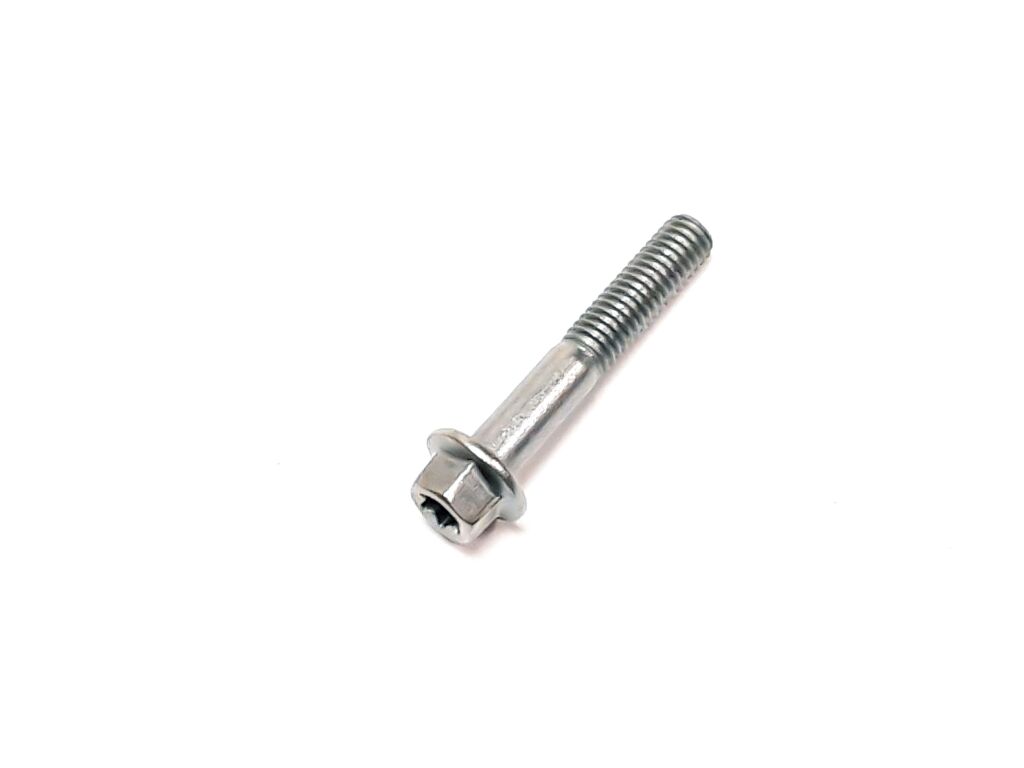

3 BOLT M6×35 (Ref. č 3) F01000007001 BOLT M6×35  11 57,02 Kč 69 Kč
SKLADEM
4 DOWEL PIN 6×10 (Ref. č 4) GBT001192001 DOWEL PIN 6×10  10 57,02 Kč 69 Kč
SKLADEM

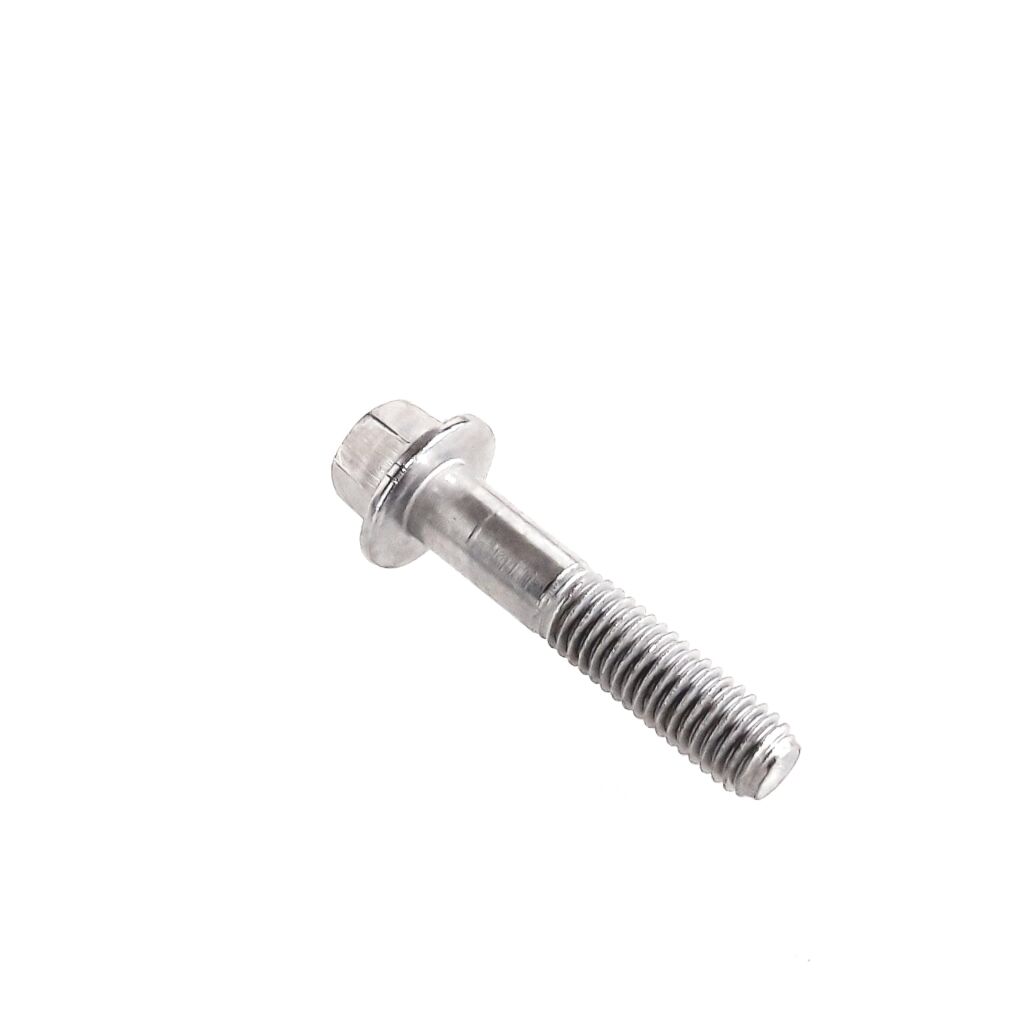

5 BOLT M8×40 (Ref. č 5) F01000017001 BOLT M8×40  2 57,02 Kč 69 Kč
SKLADEM
6 BOLT M6×75 (Ref. č 6) F02C11003001 BOLT M6×75  1 57,02 Kč 69 Kč
SKLADEM
7 BOLT M6×16 (Ref. č 7) F01000002001 BOLT M6×16  4 57,02 Kč 69 Kč
SKLADEM
8 O-Ring 13.8×2.5 (Ref. č 8) F01G00005001 O-Ring 13.8×2.5  4 57,02 Kč 69 Kč
SKLADEM

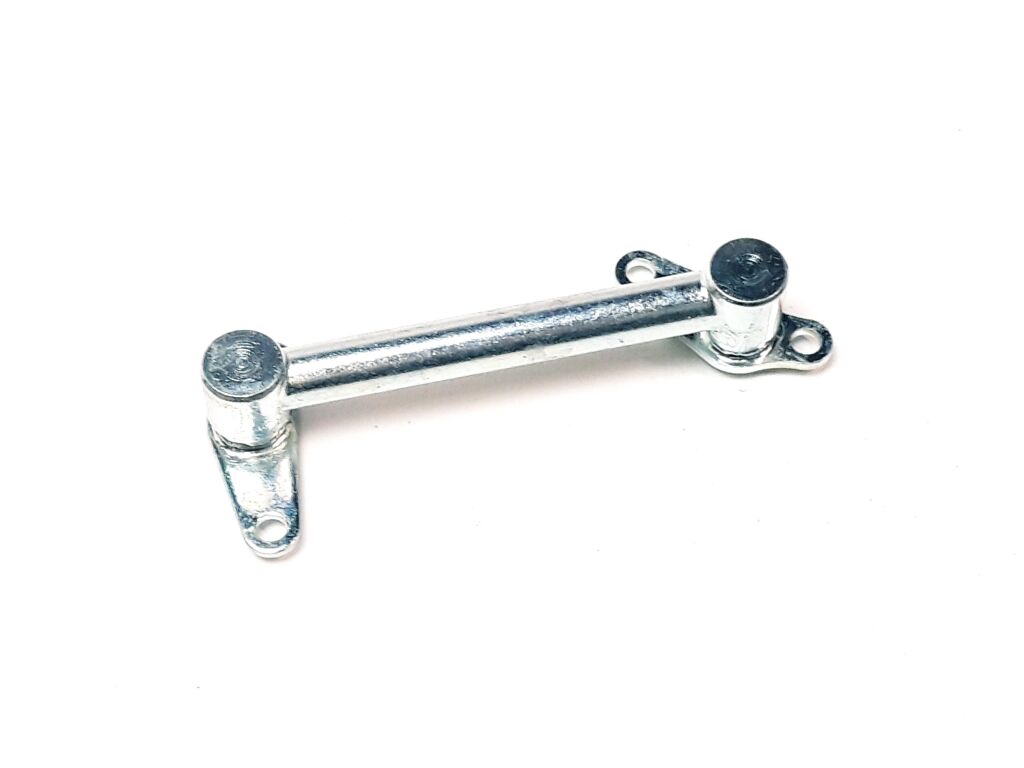

9 OIL PASSAGE ASSEMBLY (Ref. č 9) F02C13000001 OIL PASSAGE ASSEMBLY  1 139,67 Kč 169 Kč
SKLADEM

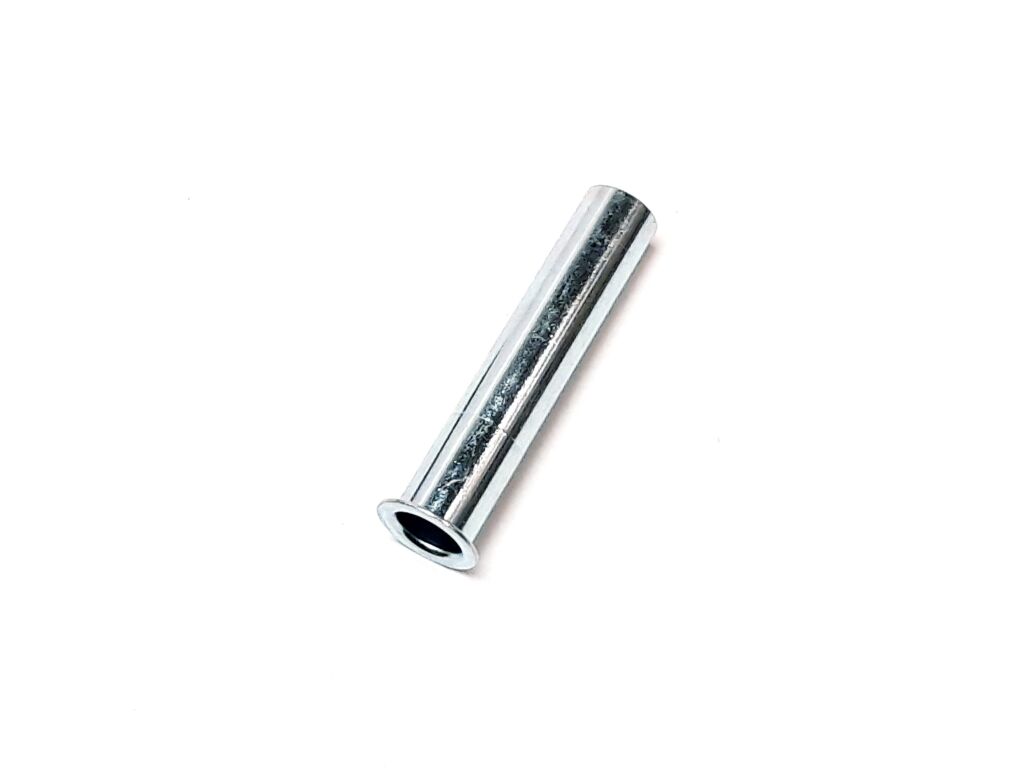

10 OUTLET PIPE (Ref. č 10) F02C10010001 OUTLET PIPE  1 57,02 Kč 69 Kč
SKLADEM
11 PLUG M14 (Ref. č 11) F02C10008001 PLUG M14  1 62,81 Kč 76 Kč
SKLADEM

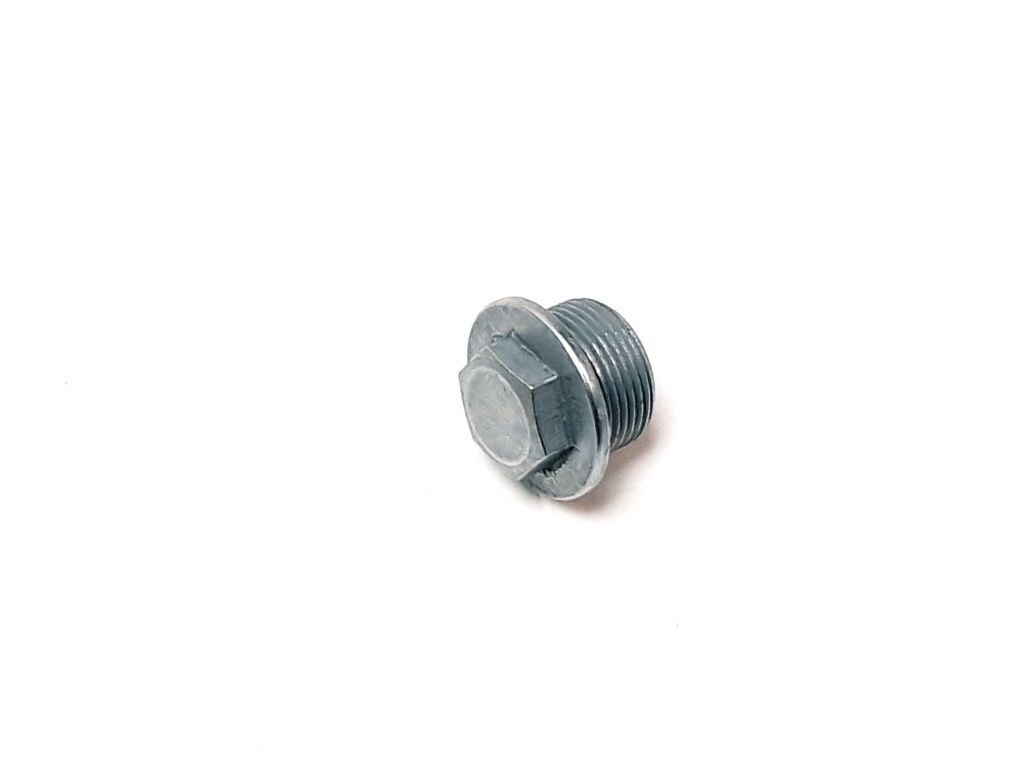

12 SCREW PLUG M24 (Ref. č 12) F02C10005001 SCREW PLUG M24  1 57,02 Kč 69 Kč
SKLADEM
13 O-RING SEAL 23X2.65 (Ref. č 13) F02C10006001 O-RING SEAL 23X2.65  1 57,02 Kč 69 Kč
SKLADEM
23 DOUBLE-ENDED STUD M10X1.25X60 (Ref. č 23) E02C00001001 DOUBLE-ENDED STUD M10X1.25X60  4 57,02 Kč 69 Kč
SKLADEM
