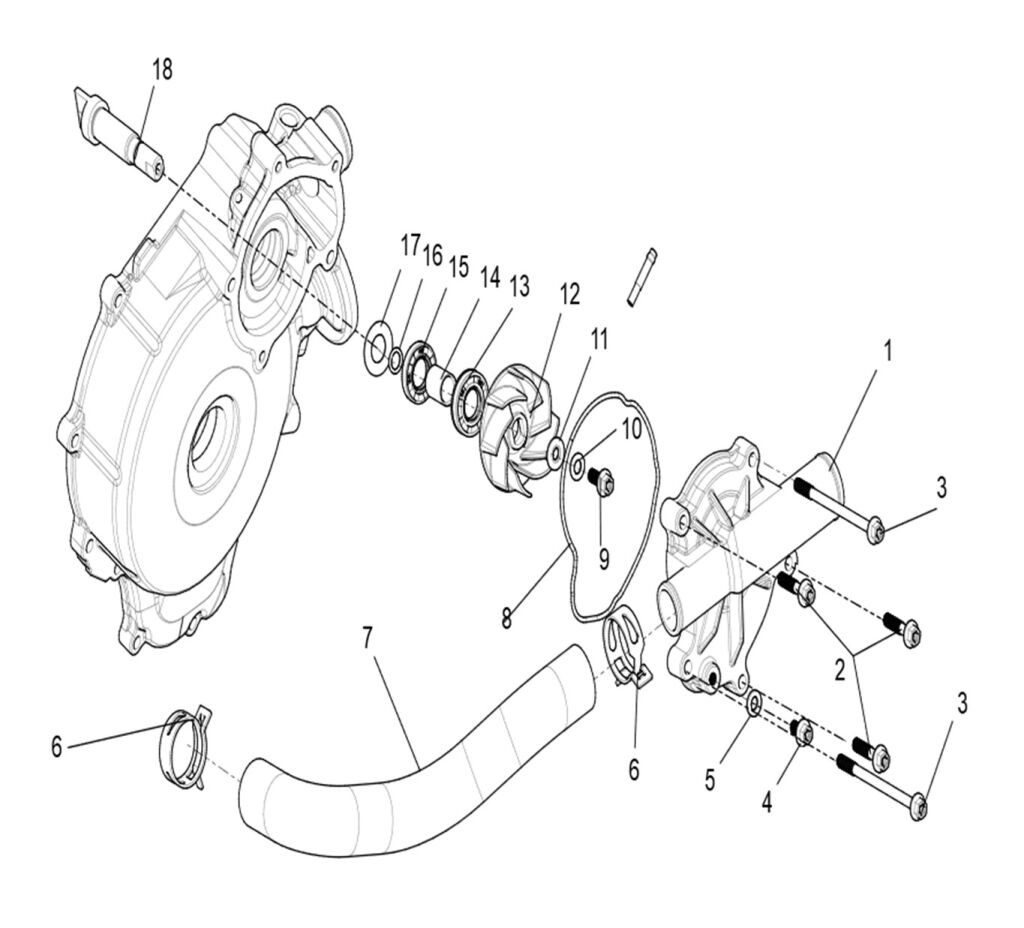

Water Pump assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_119_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 WATER PUMP COVER (Ref. č 1) F02H00001001 WATER PUMP COVER  1 270,25 Kč 327 Kč
SKLADEM
17 FLAT WASHER 13.1×25×1 (Ref. č 17) F02H00004001 FLAT WASHER 13.1×25×1  1 57,02 Kč 69 Kč
SKLADEM
16 O-RING SEAL 8×2 (Ref. č 16) F02H00006001 O-RING SEAL 8×2  1 57,02 Kč 69 Kč
SKLADEM
15 OIL SEAL 15×28×5 (Ref. č 15) F02H00010001 OIL SEAL 15×28×5  1 57,02 Kč 69 Kč
SKLADEM
14 BUSHING (Ref. č 14) F02H00007001 BUSHING  1 130,58 Kč 158 Kč
SKLADEM
13 OIL SEAL 15×30×5 (Ref. č 13) F02H00009001 OIL SEAL 15×30×5  1 57,02 Kč 69 Kč
SKLADEM
12 WATER PUMP IMPELLER (Ref. č 12) F02H00002001 WATER PUMP IMPELLER  1 109,92 Kč 133 Kč
SKLADEM
11 COMBINATION WASHER (Ref. č 11) F01H01010001 COMBINATION WASHER  1 57,02 Kč 69 Kč
SKLADEM
10 DISC SPRING 12.5×6.4×1 (Ref. č 10) F01H01009001 DISC SPRING 12.5×6.4×1  1 57,02 Kč 69 Kč
SKLADEM
9 BOLT M6×16 (Ref. č 9) F01000002001 BOLT M6×16  1 57,02 Kč 69 Kč
SKLADEM
8 WATER PUMP COVER SEALING RING (Ref. č 8) F02H00003001 WATER PUMP COVER SEALING RING  1 57,02 Kč 69 Kč
SKLADEM
7 INTERNAL CIRCULATING WATER PIPE (Ref. č 7) F02C20003001 INTERNAL CIRCULATING WATER PIPE  1 155,37 Kč 188 Kč
SKLADEM
6 CLAMP,SPRINGBAND 30 (Ref. č 6) QCT006211008 CLAMP,SPRINGBAND 30  2 92,56 Kč 112 Kč
SKLADEM
5 GASKET 6 (Ref. č 5) GBT000971009 GASKET 6  1 57,02 Kč 69 Kč
SKLADEM
4 BOLT M6×12 (Ref. č 4) F01000001001 BOLT M6×12  1 57,02 Kč 69 Kč
SKLADEM
3 F02H00012001 BOLT M6×95  2 57,02 Kč 69 Kč
NA DOTAZ
2 BOLT M6×30 (Ref. č 2) F01000006001 BOLT M6×30  3 57,02 Kč 69 Kč
SKLADEM
18 WATER PUMP SHAFT (Ref. č 18) F02H00008001 WATER PUMP SHAFT  1 368,60 Kč 446 Kč
SKLADEM
